SLF agitated kettle
Applications
The man applications refer to reaction process of production such as the mixing, abstraction, crystallization, heating, polymerization and dissolution in pharmaceutical, foodstuff, petrochemical engineering, agriculture and building industries. Performance features
----Capable of meeting with all processing process with various stirring heat
----Materials in the kettle can be heated during mixing
----Optimized design meets with various kinds of manufacturing process requirements
Technical specifications

Type	Nominal capacity （L）	Diameter （mm）	Jacket diameter （mm）	Central ring of support （mm）	Number of supports	Power （kw）	Actual capacity （L）
SLF50	50	Φ400	Φ500	Φ650	2	0.5	60
SLF100	100	Φ500	Φ600	Φ800	2	1.1	120
SLF300	300	Φ800	Φ900	Φ1100	4	2.2	360
SLF500	500	Φ900	Φ1000	Φ1328	4	2.2	600
SLF1000	1000	Φ1200	Φ1300	Φ1595	4	4.0	1200
SLF2000	2000	Φ1400	Φ1500	Φ1745	4	5.5	2400
SLF3000	3000	Φ1500	Φ1650	Φ1895	4	7.5	3600
SLF4000	4000	Φ1600	Φ1750	Φ2015	4	7.5	4800
SLF5000	5000	Φ1800	Φ1950	Φ2265	4	7.5	6000

Note:
1. Material of the agitated kettle in contacting with substance:
C: carbon steel, S: stainless steel, T: special material
2. Please make clear material, heating mode and impeller description during ordering.
3. Dimensions in the table are only for references. The company can offer special dimension design and production.

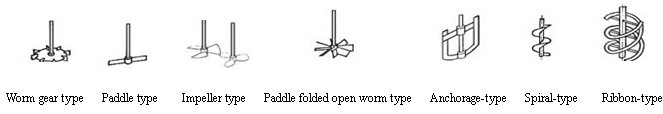

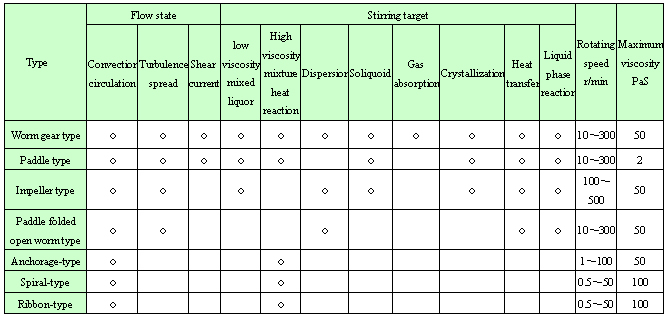

Table for model selection

Note: О denotes good performance
