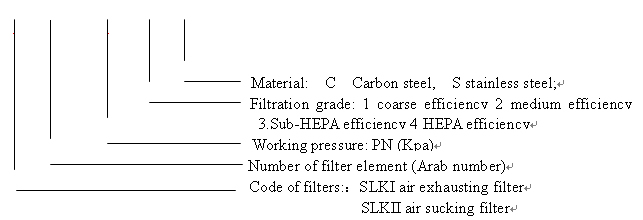

Denotation of product types

● The screen material of air filter is of high performance non-woven fabrics, an anti-cracking synthetic fiber without breaking danger as that of glass fiber, which reduces the risk of breaking leakage.
●The screen material of gas filter is of progressive increase structure, namely the density of fiber layer in the clear air direction increases progressively.
● The screen material of air filter is processed for its viscosity. The binding agent fully permeates into the fiber so as to block particles.
● The filter features large quantity air wind with low pressure loss, high filtering efficiency and reliable operation.
● The filter performs combination filtration suitable to different filtration needs.
● Unique filter assembly design ensures to replace and maintain conveniently
● The filter element doesn’t contain PVC coloring agent and balogen. It can be used for foodstuff grade filtration.
Typical applications:
●Combustion turbine, centrifugal compressor inlet filtration
●High pressure blower inlet filtration of power plant, foodstuff and beverage factories
●Purification systems of pharmaceutical, Chemical, Metallurgical and biological engineering industries.
●Central air conditioning and ventilation system
1、Blowing-in air filter（SLKI type）
 Technical specifications
| Type |
SLKI-1 |
SLKI-2 |
SLKI-4 |
SLKI-6 |
SLKI-9 |
| Filtering grade |
G3~U17 |
G3~U17 |
G3~U17 |
G3~U17 |
G3~U17 |
| Rated flow rate m3/h |
3400 |
6800 |
13600 |
20400 |
30600 |
| Filtering efficiency % |
65~99.99 |
65~99.99 |
65~99.99 |
65~99.99 |
65~99.99 |
| Initial pressure Pa |
20~40 |
20~40 |
20~40 |
20~40 |
20~40 |
| Recommended final pressure loss Pa |
200 |
200 |
250 |
300 |
300 |
| Heat resistance ℃ |
80 |
80 |
80 |
80 |
80 |
| Moisture–proof, relative humidity % |
100 |
100 |
100 |
100 |
100 | Table for erection dimensions
|
Type |
SLKI-1 |
SLKI-2 |
SLKI-4 |
SLKI-6 |
SLKI-9 |
|
DN |
DN300 |
DN400 |
DN500 |
DN600 |
DN700 |
|
L |
1900 |
2200 |
2200 |
2800 |
3000 |
|
L1 |
550 |
700 |
700 |
900 |
950 |
|
L2 |
800 |
800 |
800 |
1000 |
1100 |
|
L3 |
450 |
450 |
1000 |
1000 |
1520 |
|
A |
740 |
740 |
1330 |
1330 |
1920 |
|
B |
740 |
1330 |
1330 |
1920 |
1920 |
|
H |
470 |
815 |
815 |
1110 |
1110 |
|
4- ф |
4-ф20 |
4-ф20 |
4-ф24 |
4-ф24 |
4-ф24 | Note: Parameters and dimensions can be altered without notice. Filters with different specifications can be provided on customer request.
2、Sucking air filter（SLKII type） Technical specifications
|
Type |
SLKII-1 |
SLKII-2 |
SLKII-4 |
SLKII-6 |
SLKII-9 |
|
Filtering grade |
G3~U17 |
G3~U17 |
G3~U17 |
G3~U17 |
G3~U17 |
|
Rated flow rate m3/h |
3400 |
6800 |
13600 |
20400 |
30600 |
|
Filtering efficiency % |
65~99.99 |
65~99.99 |
65~99.99 |
65~99.99 |
65~99.99 |
|
Initial pressure Pa |
20~40 |
20~40 |
20~40 |
20~40 |
20~40 |
|
Recommended final pressure loss Pa |
200 |
200 |
250 |
300 |
300 |
|
Heat resistance℃ |
80 |
80 |
80 |
80 |
80 |
|
Moisture–proof, relative humidity % |
100 |
100 |
100 |
100 |
100 | Table for erection dimensions
|
Model |
SLKII-1 |
SLKII-2 |
SLKII-4 |
SLKII-6 |
SLKII-9 |
|
DN |
DN300 |
DN400 |
DN500 |
DN600 |
DN700 |
|
L |
1850 |
2000 |
2350 |
2800 |
3050 |
|
L1 |
550 |
700 |
700 |
900 |
950 |
|
L2 |
800 |
800 |
800 |
1000 |
1100 |
|
L3 |
450 |
450 |
1000 |
1000 |
1520 |
|
A |
740 |
740 |
1330 |
1330 |
1920 |
|
B |
740 |
1330 |
1330 |
1920 |
1920 |
|
H |
470 |
815 |
815 |
1110 |
1110 |
|
4- ф |
4-ф20 |
4-ф20 |
4-ф24 |
4-ф24 |
4-ф24 | Notes: There are many kinds of filters with different parameters. Parameters and dimensions can be altered without notice. Filters with different specifications can be provided on customer request. Please clarify the following parameters:

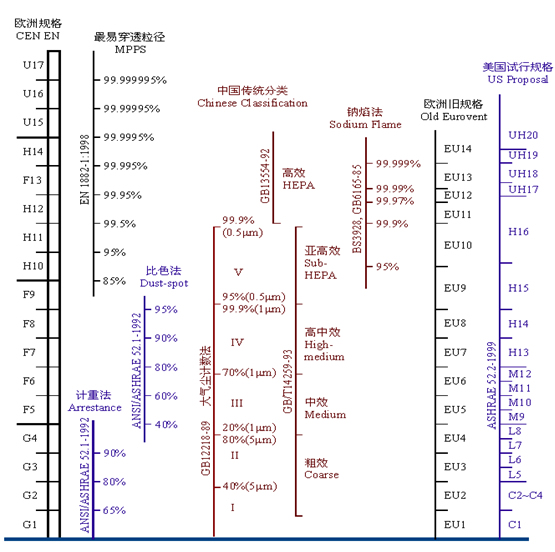

1. Air flow rate (Nm3/h) 2.Air pressure (Kpa) 3.Filtering grade 4.Filtering efficiency % 5.Dust content (g/m3)Comparison of air filter efficiency
Efficiency comparison between China, USA and European standards
|
China: GB/T14295 |
Coarse |
Medium |
High-medium |
|
USA :ASHRAE |
C1 |
C2,3,4 |
L5 |
L6 |
L7 |
L8 |
M9 |
M10 |
M11 |
M12 |
H13 |
H14 |
|
Europe: CEN |
G1 |
G2 |
G3 |
G4 |
F5 |
F6 |
F6 |
F7 |
F8 |
|
Europe :EUROVENT |
EU1 |
EU2 |
EU3 |
EU3 |
EU5 |
EU6 |
EU6 |
EU7 |
EU8 |
|
China :GB/T14295 |
Sub-HEPA |
HEPA |
|
USA ASHRAE |
H15 |
H16 |
UH17 |
UH18 |
UH19 |
UH20 |
|
Europe :CEN |
F9 |
H10 |
H11 |
H12 |
H13 |
H14 |
U15~17 |
|
Europe :EUROVENT |
EU9 |
EU10 |
EU11 |
EU12 |
EU13 |
EU14 |
|
|
