FP ceramic cartridge
■Product features
The ceramic cartridge is sintered with emery, quartz flour and vanadine fire-proof material as its aggregates and some binding and modification agents in a temperature more than 1000 oC. There are large quantities of air pores evenly distributed within the structure, featuring micro-diameter control, high porosity and uniform pore diameter, characteristic of low filtration resistance, fine penetration, high-resistance to high temperature, acid-base erosion and long lifetime, easy to regeneration.
■Applications
—— Petroleum refinery:
—— Chemical industry: Filtration for acid and base, mixing and filtering of gas.；
—— Pharmaceutical industry: Filtration of asepsis water and gas
■Main technical specifications
| Material |
spiracle percentage
% |
Ventilate capability
m3·cm/m2·h·mmH2O |
Press. resistance
MPa |
Acid resistance % |
alkaline resistance % |
Max Press. drop
MPa |
Temperature resistance
℃ |
Filtering accuracy
μm |
| Emery |
28-50 |
0.02-20 |
20-100 |
≥98 |
≥98 |
0.8 |
800 |
0.5、1、
3、5、10 |
| Quartz |
30-60 |
0.05-20 |
10-40 |
≥99 |
≥95 |
0.6 |
200 | ■Main dimensions
|
Type |
D (mm) |
D(mm) |
L (mm) |
|
Ⅰ |
Φ50 |
Φ30 |
760 |
|
Ⅱ |
Φ60 |
Φ40 |
100 |
|
Ⅲ |
Φ70 |
Φ40 |
1000 |
|
Ⅳ |
Φ200 |
Φ140 |
1000 |
|
Ⅴ |
Φ400 |
Φ350 |
500 |

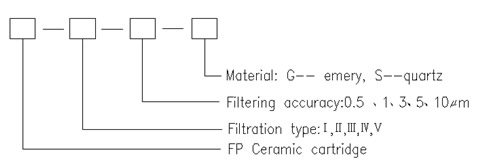

Example: FP-III-5G denotes an emery ceramic cartridge (Exradiusφ70, Inradiumφ40) with filtering accuracy for 5μm.
|
|
